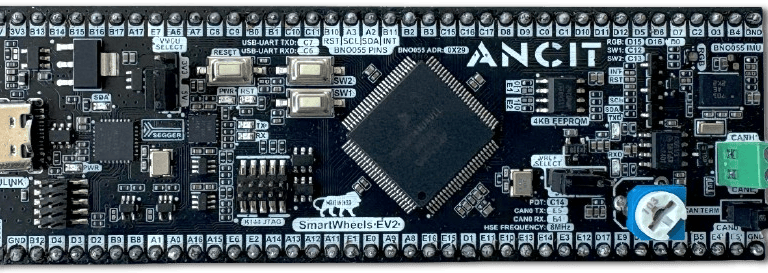

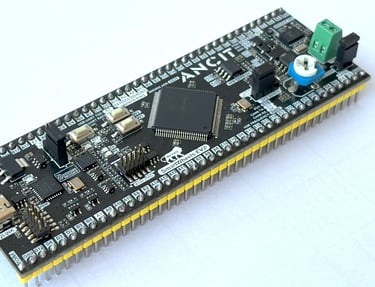

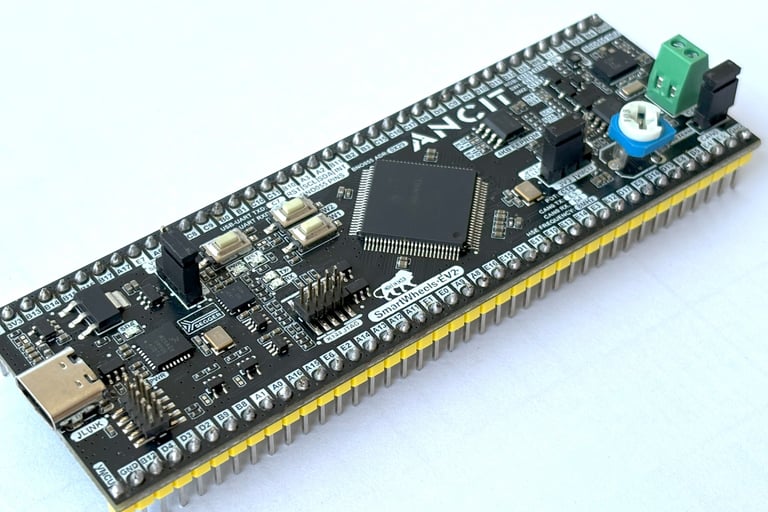

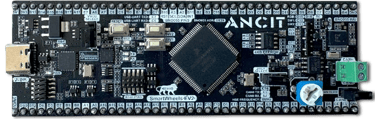

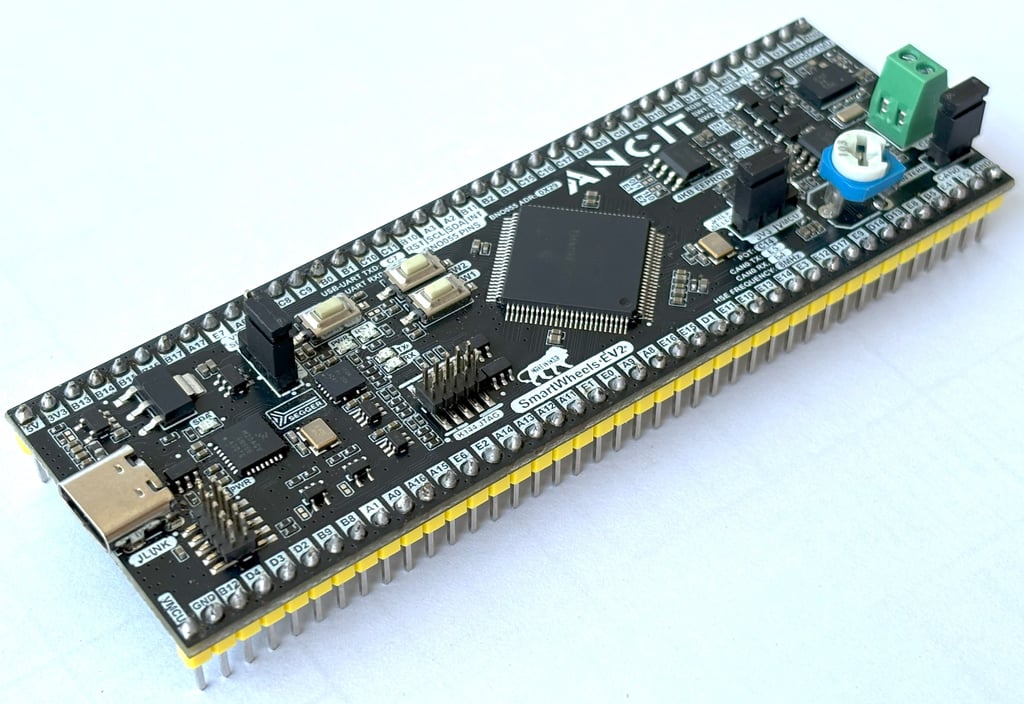

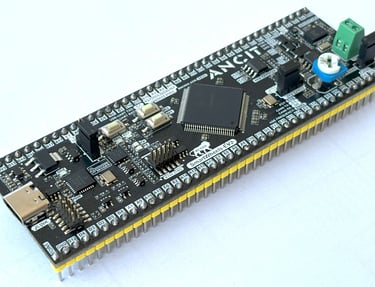

S32K144 SmartWheels Micro EV2

The S32K144 SmartWheels Micro EV2 is a low cost development board based on the NXP S32K144UAT0VLLT microcontroller. The S32K144 offers functional safety compliance with ISO26262 ASIL Class B. The S32K144 SmartWheels Micro EV2 is equipped with onboard Segger J-Link Debugger along with CAN2.0B transceiver and Bosch BNO055 IMU sensor. This makes the S32K144 SmartWheels Micro EV2 a complete development package in itself. The S32K144 SmartWheels Micro EV2 also allows the user to switch between 3.3V and 5V logic along with the ability to change the ADC Reference voltage between 3.3V and 5V. It makes the S32K144

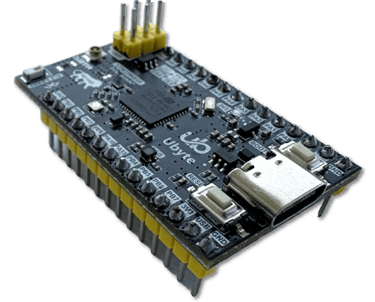

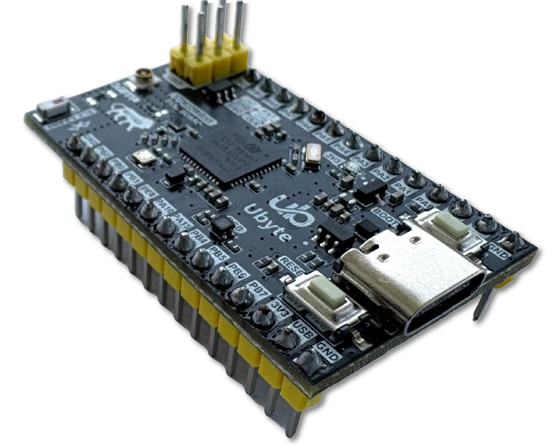

STM32WB55CGU6 Evaluation Board

The STM32WB55CGU6 Evaluation Board is a high-performance development platform designed for IoT, wireless communication, and embedded system applications. It is based on the STM32WB55CGU6 microcontroller, which integrates dual-core processing, Bluetooth 5.0 connectivity, and various peripheral interfaces.

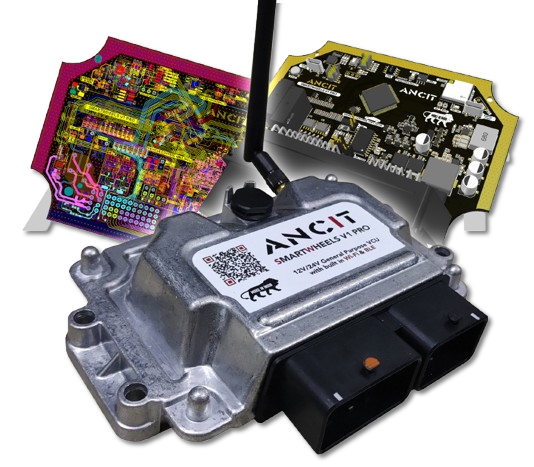

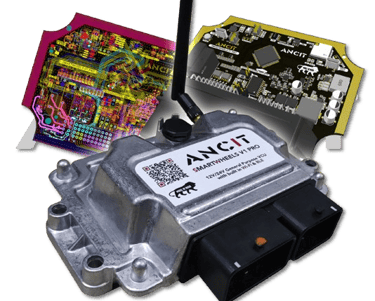

SmartWheel V1.1 Pro

SmartWheels V1.1 Pro is a general purpose Vehicle Control Unit Designed for evaluation, prototype development and deployment. The VCU is designed for a wide input voltage range from 10.8V to 36V making it ideal for 12V and 24V automotive systems. The SmartWheels V1.1 Pro is powered by NXP S32K144 chipset. Onboard ESP32 C3 MiniWiFi equips the SmartWheels V1.1 Pro with WiFi and BLE connectivity for applications requiring OTA, wireless control or any IOT integration. The SmartWheels V1.1 Pro is protected against reverse polarity and reverse current. Enclosed in an all aluminium enclosure that can be sealed to give SmartWheels V1.1 Pro an IP65 rating ideal for deployment on 4 wheelers and 3 wheelers. The SmartWheels V1.1 Pro also features an onboard Segger J-Link Debugger (only for evaluation samples) to allow seamless automotive embedded software development.
